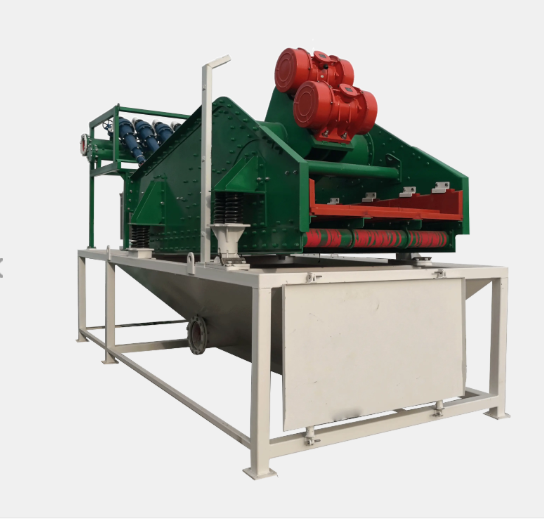

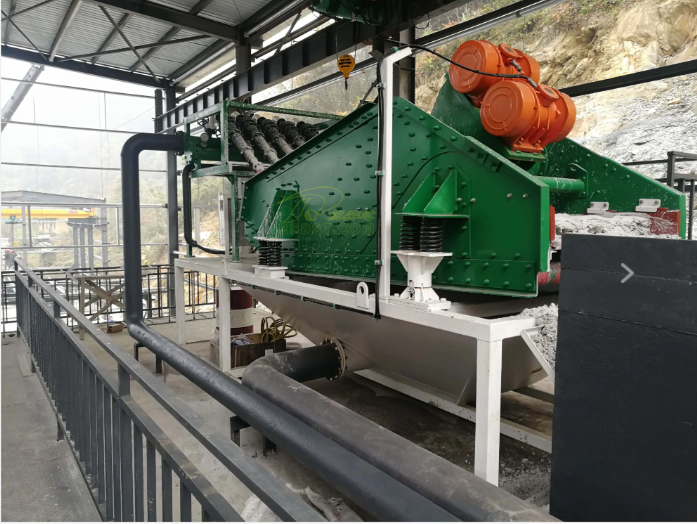

The skid mounted equipment, which is composed of high efficiency concentrated cyclone, new dewatering sieve and slag slurry pump, has the characteristics of large capacity, high dewatering efficiency, low operating cost, compact arrangement, convenient installation and small space occupation.
It can realize the dry drainage of mine tailings sorting, fine sand recovery of wastewater, sand and stone powder desliming and other working conditions.
Technology comprehensive commentary：
1,Adopts balance ellipse technology, with good separation effectiveness.
2,Adopts variable motion technology ,which can adjust the motion automatically according to feeding condition of materials.
3,Testing in advance is available for each material, and solution can be designed specially according to different material nature to enhance the comprehensive operation effectiveness.
Technical parameters of concentrated cyclone
Model
Diameter（mm）
Feed pressure（Mpa）
Processing power（m³/h)
Separation size（μm）
RSD/XLQ75
75
0.1~0.3
6~10
5~15
RSD/XLQ100
100
0.1~0.3
15~20
10~20
RSD/XLQ150
150
0.1~0.3
25~40
20~40
RSD/XLQ200
200
0.1~0.3
40~60
25~30
RSD/XLQ250
250
0.1~0.3
60~90
30~50
RSD/XLQ300
300
0.1~0.3
90~120
33~60
RSD/XLQ350
350
0.1~0.25
110~180
38~74
RSD/XLQ450
450
0.1~0.25
200~300
60~80
RSD/XLQ550
550
0.1~0.25
300~400
70~90
RSD/XLQ650
650
0.1~0.25
400~550
74~100
Technical parameters of shale shaker
Model
Screen surface inclination（o）
Commonsieve size(mm)
Material amount（t/h）
Trajectory
Trajectory
power(kw)
Trajectory
power(kw)
Weight(kg)
RSD/BS1037
-5~-3
0.2~0.6
10~15
double trajectories of balance elliptical
2x1.1
linear motion
2x1.1
3.8
RSD/BS1237
-5~-3
18~65
double trajectories of balance elliptical
2x2.4
linear motion
2x2.4
4.5
RSD/BS1537
-5~-3
30~90
double trajectories of balance elliptical
2x3.1
linear motion
2x3.1
5.7
RSD/BS1740
-5~-3
40~120
double trajectories of balance elliptical
2x7.5
linear motion
2x7.5
6.6
RSD/BS1848
-5~-3
40~120
double trajectories of balance elliptical
2x7.5
linear motion
2x7.5
6.6
Technical features

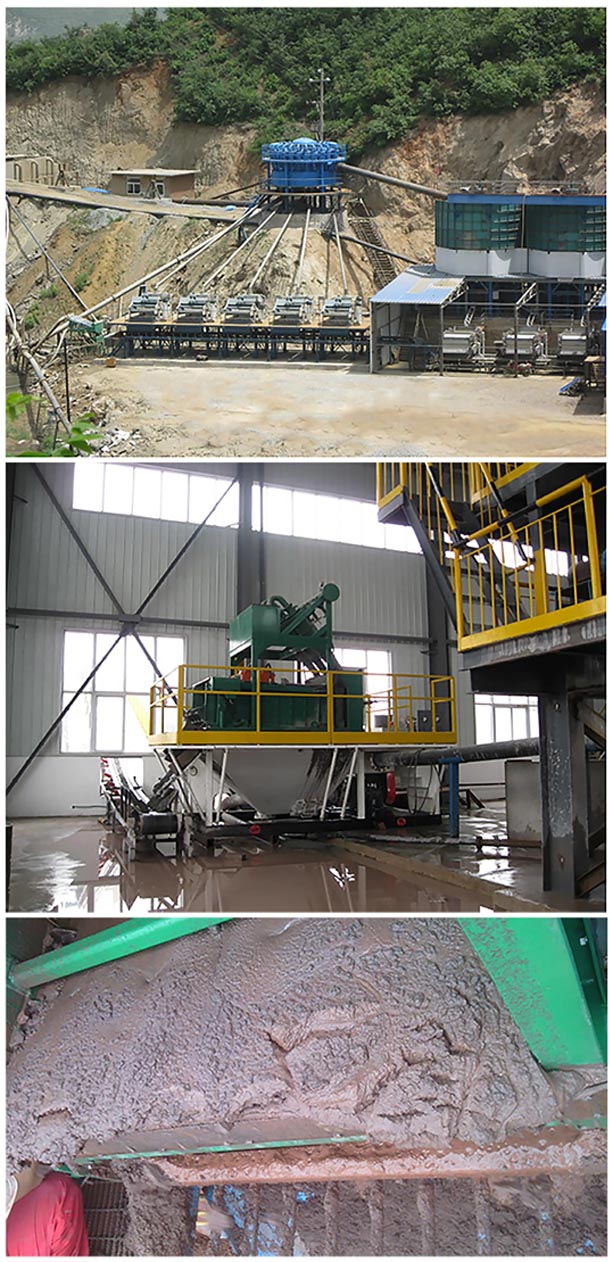

1,The Tailings Dry Stacking Machine of Restar, according to user requirements for processing capacity and grading granularity matching design.
2,The equipment of small low power consumption, less wearing parts, convenient maintenance;According to the situation of the site, the combination of multiple units, to reach the processing scale.
3,According to user requirements and recommend the condition of material matching motioned elliptical trajectory solution and straight trajectory in order to solve the paste screen, the screen and the phenomenon of accumulated sand, improve equipment sieve permeability and discharging effect is good.
4,Adopts frequency conversion control system, to adapt to the working condition of a wide range, using vacuum auxiliary dehydration screen can achieve the result of more dry.
5,Splash proof system, electric dynamic adjustment Angle system makes the equipment operation is simple and clean.
